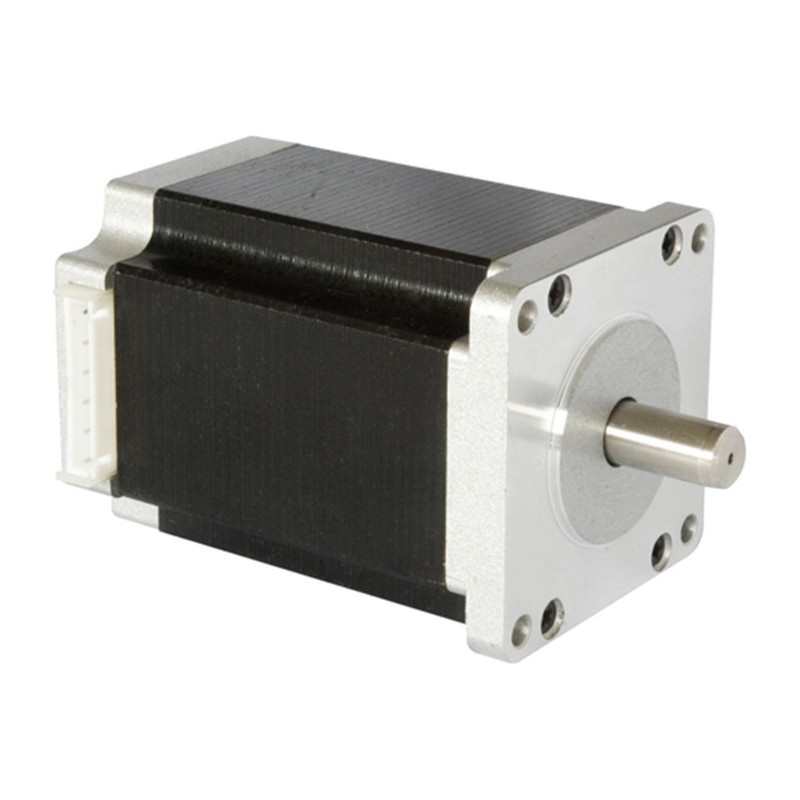

The 60HS Series 2 Phase Hybrid Stepping Motor (NEMA24 frame size) is engineered for high-precision motion control applications, delivering reliable performance and exceptional torque output. With a standard step angle of 1.8°, this motor ensures smooth, accurate positioning—ideal for industrial automation, robotics, and precision machinery where consistent motion is critical.
Specifications of Series 60HS Hybrid Stepping Motor
The 60HS2A nema 24 Stepping motor motor has high positioning precision with high power at low speeds, as well as high stall torque and the possibility to work in microsteps. This nema 24 stepper motor can provide direct and precise motions in a 60 mm square design. Permanent magnet and hybrid technologies are used to provide a full range of solutions.
Motor Highlights
- Step angle 1.8°
- 2 phases
- Holding torque up to 2.8 Nm
High Precision Positioning: 1.8° step angle (200 steps/rev) ensures minimal positioning error, supported by optional microstepping drivers for ultra-smooth motion (down to 0.01125° per microstep).
Strong Holding Torque: Delivers up to 4.5N·m of holding torque at rated current, preventing shaft slippage even under static loads—critical for vertical lifting or precision clamping applications.
Low Vibration & Noise: Optimized rotor slot design and magnetic circuit structure reduce cogging torque (≤5% of holding torque) and operational noise (≤55dB at 1000rpm), hybrid stepping motor ideal for quiet environments like medical equipment or laboratory automation.
Durable Construction: Robust NEMA24 aluminum alloy housing resists corrosion and mechanical impact, while Class B/F insulation ensures long-term stability in high-temperature industrial settings.
Flexible Compatibility: Works seamlessly with most 2-phase hybrid stepping motor drivers (voltage range: 12V~48VDC) and supports customizations for specialized needs.
The 60HS Series NEMA24 stepping motor is widely used in industries requiring precise motion control, including:
Industrial Automation: CNC routers, 3D printers, laser cutters, and pick-and-place machines.
Robotics: Joint drives for collaborative robots (cobots), AGV (Automated Guided Vehicle) steering systems.
Medical Equipment: Diagnostic scanners, surgical robots, and fluid dispensing devices.
Packaging Machinery: Labeling machines, filling systems, and conveyor belt positioning.
Semiconductor & Electronics: PCB assembly equipment, component placement machines, and wafer handlers.
Model | Holding Torque (N·cm±10%) | Current / Phase (A) | Resistance / Phase (ohms±10%) | Inductance / Phase (mH±20%) | Detent Torque (N·cm) | Rotor Inertia (g-cm2) | Length (mm) | Weight |
60HS2A41-204 | 75 | 2.0 | 1.2 | 2.5 | 3.0 | 180 | 41 | 500 |
60HS2A45-254 | 85 | 2.5 | 1.0 | 2.2 | 3.5 | 200 | 45 | 550 |
60HS2A51-254 | 140 | 2.5 | 1.2 | 3.2 | 4.0 | 250 | 51 | 580 |
60HS2A56-254 | 160 | 2.5 | 1.3 | 4.2 | 4.0 | 350 | 56 | 580 |
60HS2A56-304 | 160 | 3.0 | 0.8 | 2.4 | 4.0 | 350 | 56 | 580 |
60HS2A56-424 | 160 | 4.2 | 0.4 | 1.2 | 4.0 | 350 | 56 | 580 |
60HS2A64-254 | 180 | 2.5 | 1.5 | 4.5 | 5.0 | 450 | 64 | 850 |
60HS2A64-304 | 180 | 3.0 | 0.8 | 2.3 | 5.0 | 450 | 64 | 850 |
60HS2A64-424 | 180 | 4.2 | 0.55 | 1.2 | 5.0 | 450 | 64 | 850 |
60HS2A76-254 | 220 | 2.5 | 1.8 | 6.5 | 7.0 | 550 | 76 | 1150 |
60HS2A76-304 | 220 | 3.0 | 1.0 | 3.5 | 7.0 | 550 | 76 | 1150 |
60HS2A76-424 | 220 | 4.2 | 0.6 | 1.8 | 7.2 | 550 | 76 | 1150 |
60HS2A90-304 | 260 | 3.0 | 1.4 | 5.5 | 12 | 780 | 90 | 1400 |
60HS2A90-424 | 260 | 4.2 | 0.8 | 3.0 | 12 | 780 | 90 | 1400 |
nema 24 stepping Motor are available with different winding and mechanical modification to meet specific applications.
