In the world of electric motors, DC motors are widely used for their simplicity, efficiency, and versatility. Among the various types of DC motors, speed is a critical parameter, particularly in applications requiring rapid response and high performance. This article explores the characteristics of DC motors, factors influencing their speed, and highlights some of the fastest DC motors available on the market today.

Understanding DC Motors

DC motors convert electrical energy into mechanical energy through the interaction of magnetic fields. They are classified into several types, including:

1. Brushed DC Motors: These are the most common type, utilizing brushes and a commutator to supply current to the rotor windings. They are simple and cost-effective but may experience wear and tear due to friction.

2. Brushless DC Motors (BLDC): These motors eliminate brushes, using electronic controllers to manage current flow. They are more efficient, quieter, and have a longer lifespan compared to brushed motors.

3. Coreless DC Motors: These motors feature a rotor without a core, resulting in reduced weight and inertia. They can achieve higher speeds but are typically used in low-power applications.

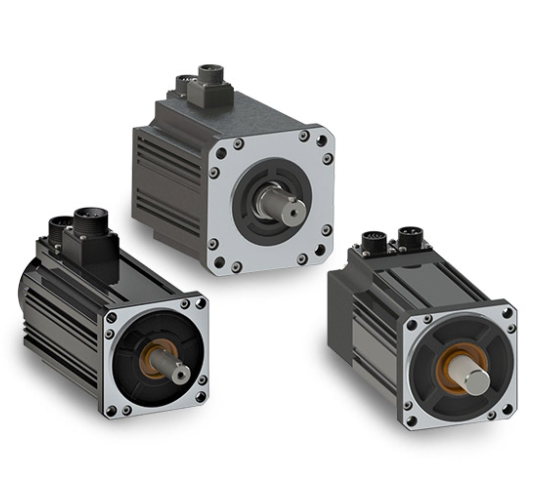

4. Servo Motors: While technically a type of DC motor, servo motors are designed for precise control of angular position, velocity, and acceleration. They can be either brushed or brushless.

Factors Influencing DC Motor Speed

Several factors influence the speed of a DC motor, including:

1. Voltage: The voltage supplied to a DC motor directly affects its speed. Higher voltage typically results in increased speed, but it must be within the motor's rated specifications to avoid damage.

2. Load: The mechanical load on the motor impacts its speed. As the load increases, the motor may slow down due to the additional torque required to overcome the resistance.

3. Motor Design: The construction and materials used in a motor can significantly affect its speed capabilities. Motors designed for high performance often use high-quality magnets, windings, and rotor designs.

4. Control Systems: Advanced control systems, such as pulse-width modulation (PWM), can optimize motor performance and speed control, allowing for faster acceleration and deceleration.

The Fastest DC Motors

Several manufacturers specialize in high-speed DC motors, designed for specific applications such as robotics, aerospace, and automotive industries. Here are some of the fastest DC motors currently available:

1. Maxon EC 22 Brushless DC Motor

Maxon is renowned for producing high-quality precision motors. The EC 22 is a brushless DC motor with impressive speed capabilities. It can reach speeds of up to 100,000 RPM (revolutions per minute) under optimal conditions. This motor is commonly used in robotics, medical technology, and aerospace applications where high speed and precision are essential.

2. Faulhaber 2232 BX4

Faulhaber specializes in miniature and micro motors. The 2232 BX4 is a brushless DC motor that achieves speeds of up to 100,000 RPM. Its compact size and high-performance characteristics make it suitable for applications in robotics, automation, and medical devices, where space is limited, but speed is critical.

3. Nidec 35 mm Brushless DC Motor

Nidec produces a variety of high-speed motors. Their 35 mm brushless DC motor can reach speeds of around 90,000 RPM. This motor is often used in high-speed fans, cooling systems, and other applications where rapid airflow is necessary.

4. Portescap 16DCT Motor

The Portescap 16DCT is another brushless DC motor known for its high speed, capable of reaching up to 80,000 RPM. It is designed for applications that require high torque and speed, such as in medical instruments and robotics.

5. Mabuchi RF-500TB-14400

This brushed DC motor is a popular choice for hobbyists and low-cost applications. It can achieve speeds of up to 36,000 RPM. While not as fast as some brushless models, its affordability and ease of use make it a common choice in toy motors and small devices.

Applications of High-Speed DC Motors

High-speed DC motors are utilized in various applications, including:

1. Robotics: Fast motors are essential for robotic arms and mobile robots that require quick movements and precise control. High-speed motors enable rapid acceleration and responsiveness.

2. Aerospace: In aerospace applications, such as drones and satellites, high-speed DC motors are used for propulsion systems, gimbals, and actuators that demand precise and rapid movements.

3. Medical Devices: Many medical devices, such as surgical tools and imaging equipment, require high-speed motors for optimal performance, allowing for quick operation and enhanced patient safety.

4. Industrial Automation: In manufacturing, high-speed DC motors are used in conveyor systems, packaging machines, and other automated processes that require rapid movement and efficiency.

5. Consumer Electronics: High-speed motors are common in devices such as electric shavers, hair dryers, and power tools, where speed and performance directly impact user experience.

The search for the fastest DC motor reveals a fascinating intersection of engineering, technology, and application. With advancements in materials, design, and control systems, modern DC motors can achieve impressive speeds, making them indispensable in various industries. Motors like the Maxon EC 22 and Faulhaber 2232 BX4 showcase the pinnacle of high-speed performance, pushing the boundaries of what is possible in motor technology.

As industries continue to evolve and demand higher performance, the development of faster and more efficient DC motors will undoubtedly play a pivotal role in shaping the future of electric machinery. Whether in robotics, aerospace, or consumer electronics, high-speed DC motors will remain at the forefront, driving innovation and enhancing the capabilities of modern devices.
