Frameless torque motors help new robots and machines work better. These motors are used when small size, quick movement, and strong force are important. More people want frameless torque motors as factories try to work faster and smarter. Robots and machines in factories are growing by 12–18% each year. Picking the right motor can help you do more work, stop less, and make things run better. Sunrise Electric Motor makes new frameless motors that help you solve today’s factory problems.

Key Takeaways

• Frameless torque motors are small and strong. They work well when space is tight and you need things to run well.

• To pick the best motor, you must know your machine’s torque, speed, and size needs. This helps the motor work its best.

• Frameless motors do not need much care. They can work in tough places. This makes them good for robots and medical tools.

• Keeping the motor cool is very important. Good cooling helps the motor last longer and stops it from getting too hot.

• Working with suppliers and testing your ideas can help you avoid mistakes. This makes sure the motor fits your project needs.

Frameless Torque Motors: Fundamentals

What Are Frameless Motors

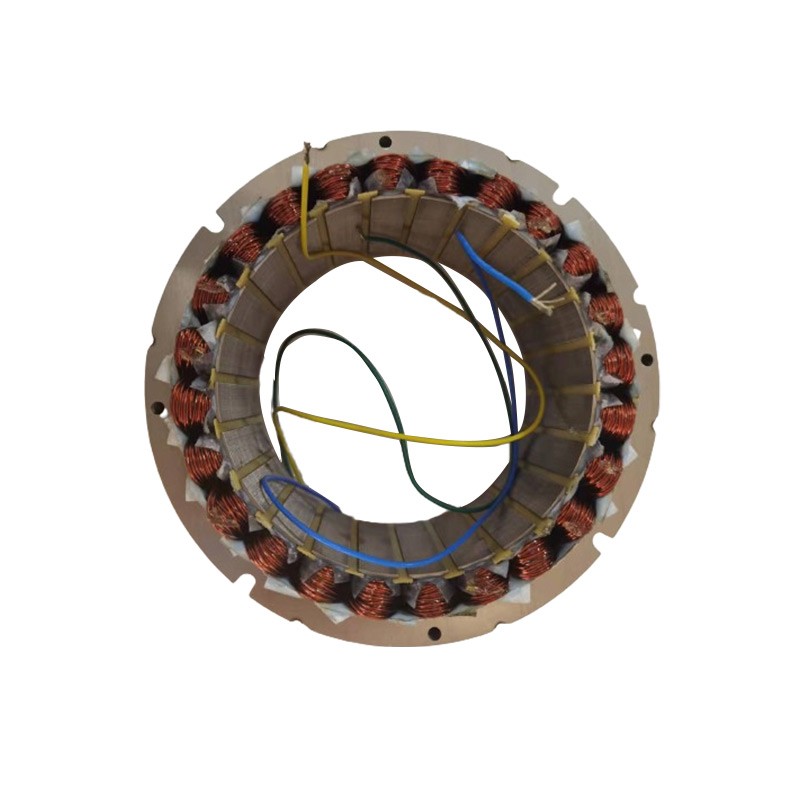

Frameless motors are important parts in many machines. They do not have a case around them. You only get the rotor and stator. This makes it easy to put the motor inside your machine. Engineers use frameless torque motors for strong power in small spaces. These motors can handle high torque and tough temperatures. They also meet strict rules for shock and power.

Frameless vs. Other Motors

Frameless motors are different from traditional motors. The main difference is how they are built. Frameless motors do not have a housing. They are lighter and fit into small spaces. You can change them to fit your project. Traditional motors have a case. This makes them heavier and harder to use in tight spots.

Key Benefits and Drawbacks

Frameless motors have many good points. They give more torque in less space. You can design your machine the way you want. These motors need less maintenance. They work well in big factories. But you need skill to put them together and make them work.

Tip: Frameless motors are great when you need a small, strong, and flexible motor for your machine.

When picking a motor, think about space, weight, and power. Frameless motors help you build smarter and lighter machines.

Selecting Frameless Motors

Matching Specs to Application

To pick the right frameless torque motors, you must know your machine. Think about what your machine needs to do. Every job needs its own amount of torque, speed, and size. Sunrise Electric Motor has many direct drive torque motor choices. Some are for high-torque jobs, and some are for high-speed jobs. For example, frameless outrunner motors are good for robotic arms or humanoid legs. These jobs need strong torque and can carry heavy things. Frameless inrunner motors are better for fast moves and careful control. You see these in drones or quick robot arms.

You also need to check if the motor meets important rules. These rules help make sure the motor works well and lasts a long time. Here is a table with some important rules to look at:

Sunrise Electric Motor frameless motors follow many of these rules. You can trust these motors to work well for your job.

Torque, Speed, and Fit

You need to match the torque and speed to your job. Torque is the force that moves or holds things. Speed is how fast the motor spins. Both are needed for your machine to work right. Sunrise Electric Motor frameless motors use direct drive. The rotor connects right to your load. This gives you more power and less wasted energy. You also do not need much maintenance because there are fewer moving parts.

Here are some key words you should know:

You can use these formulas to find out what your job needs. If you need help, Sunrise Electric Motor can help you with special engineering.

Tip: Always check if the motor fits in your machine. Sunrise Electric Motor frameless motors are small and easy to fit. You can put them in tight spots and still get good power.

Environmental Considerations

Your job might be in a tough place. Heat, water, and shaking can change how long your frameless torque motors last. If your job is in a hot place, high heat can lower torque and waste more power. Water can get inside and hurt the insulation. Shaking can wear out parts and cause problems.

Here are some things to watch out for:

• Big changes in heat can break the insulation.

• Water or wetness can hurt the inside parts.

• Strong shaking can make parts wear out faster.

Sunrise Electric Motor frameless motors have ratings like IP54 to IP67. These show how well the motor keeps out dust and water. You can use these motors in many jobs, even in hard places.

Trade-Offs in Selection

When you pick frameless torque motors, you may have to make choices. You want strong power and good control, but you also want the motor to stay cool and be easy to put in. Sunrise Electric Motor’s direct drive torque motors give you more power and need less care. Still, you must think about heat, size, and control.

Here is a table of common choices you may face:

Sunrise Electric Motor frameless motors meet top rules like CE, UL, RoHS, and ISO 9001:2015. You get a direct drive torque motor that is strong, small, and works well. You can use these torque motors in many jobs, like robots or medical machines. Always match the motor’s specs to your job for the best results.

Integration and Control

Mechanical Integration

You need to think about how to fit a frameless torque motor into your machine. Start by setting safe limits for how fast the motor spins. This helps you avoid damage. Watch for vibration. If you notice too much shaking, you can catch problems early. Use protective barriers to keep debris from spreading if something breaks.

When you put the motor in place, you have a few choices:

• Bonding works well if you have little space. It makes the motor easy to fit.

• Axial clamping lets you take the motor out and put it back in without much trouble.

• Press fit gives you a tight hold and helps move heat away from the motor.

Check for rotor imbalance. If the rotor is not balanced, it can cause the motor to fail. Learn about bearing failure modes so you can spot trouble before it starts. For high-speed jobs, always use containment to keep your machine safe.

Thermal Management

Keeping your frameless torque motor cool is important for long life and strong performance. You can use liquid cooling systems built into the stator. These systems pull heat away fast, so your motor can run at higher power for longer. Advanced thermal interface materials help move heat from the motor to the cooling system. Heat pipes and vapor chambers also help carry heat away.

Some motors use phase-change cooling. This method works well when you need a small but powerful cooling system. Real-time temperature sensors let you watch the motor’s heat and adjust cooling as needed. You can use active cooling, like liquid systems, for the best heat control. Passive methods, such as special materials, help spread heat and keep the motor safe.

Control Systems

You need a good control system to get the most from your frameless torque motor. These motors use advanced control algorithms and feedback systems. Real-time monitoring helps you keep torque steady and accurate. Closed-loop control checks the motor’s position and speed many times each second. This keeps your machine running smoothly.

Compensation techniques help the motor adjust when things change, like load or temperature. With these systems, you can trust your motor to deliver the right torque at the right time. Good control means your machine will work better and last longer.

Tip: Always match your control system to your motor’s needs. This helps you get the best torque and performance for your job.

Frameless Torque Motors in Industry

Robotics and Automation

Frameless motors are used a lot in robots. These motors help robots move fast and with care. You can put them in robot arms, grippers, and machines that pick things up. Frameless torque motors give strong force and quick action. This helps robots do more jobs and work faster. Sunrise Electric Motor’s frameless motors keep giving power, so robots can run all day with less stopping.

Tip: Frameless torque motors help robots move smoothly and quietly. They also make robot moves more exact.

Aerospace and Defense

Frameless torque motors are used in planes and defense gear. These motors fit inside things like sensor gimbals and flight controls. They work in places that are very hot, cold, or shaky. Sunrise Electric Motor’s frameless motors meet hard rules like MIL-STD-810. You can count on them for strong and steady power in tough spots.

Medical Devices

Frameless motors are important in medical machines. You find them in surgery robots, imaging tools, and lab gear. These motors give the careful moves needed to keep patients safe. Sunrise Electric Motor’s frameless motors follow rules like ISO 13485 and IEC 60601. They pass hard tests for being exact and working well for a long time. You also get safety and risk checks for peace of mind.

• Very exact for surgery

• Work well in clean rooms

• Meet medical safety rules

• Last through many cleaning cycles

Precision Tools and Manufacturing

Frameless torque motors are used in tools and factory machines. These motors help you control movement and give lots of power in a small size. Direct drive systems save energy and make things move faster. Sunrise Electric Motor’s frameless motors help you get joint moves right within ±0.01° and repeat moves within ±0.005°. You can make machines smaller, lighter, and better.

Sunrise Electric Motor’s frameless torque motors have certifications like CE, RoHS, and TUV. You get motors that work in many fields and meet top rules.

Practical Tips for Frameless Motors

Supplier Collaboration

When you work with a supplier for frameless motors, you need to focus on a few important things. Good teamwork helps you get the best results for your project. Here are some key points to discuss with your supplier:

• Thermal management: You must keep the motor cool, especially in high-torque jobs. Ask about cooling options like liquid cooling or special heat sinks.

• Manufacturing precision: Tight tolerances matter for efficiency and performance. Make sure your supplier can keep the air gap uniform.

• Control system integration: Your motor and control system must work well together. Talk about how the motor will handle changes in load and speed.

• Material limitations: Some motors use rare-earth magnets. Check if your supplier has a steady supply and can handle any risks.

Tip: Share your project needs early. This helps your supplier suggest the right torque motor for your job.

Prototyping and Testing

Before you use a frameless motor in your machine, you should build and test a prototype. This helps you find problems early and make sure the motor meets your needs. Here is a simple table to guide you:

You should also follow standards like DO-160 for temperature and vibration tests. DO-254 helps you check the design for safety. Start by setting clear goals for your tests. Check if the motor gives the right torque, works for a long time, and meets your project’s needs.

Avoiding Common Pitfalls

You can avoid many problems by planning ahead. Here are some tips:

1. Always match the torque rating to your machine’s needs. Too little torque can cause failure, while too much can waste energy.

2. Test the motor in real conditions. This shows if the torque stays steady during long use.

3. Watch for overheating. High torque can make the motor hot, so use good cooling.

4. Make sure your control system can handle changes in torque and speed.

5. Work closely with your supplier to solve any issues early.

Note: Careful planning and testing help you get the most out of your frameless torque motor.

You can pick and use frameless torque motors by doing these things: First, figure out how much heat the motor makes so you can keep it cool. Next, make sure you mount the motor very carefully so it fits right. Then, check if the motor works with your feedback systems. After that, pick servo drives that help you control the motor well. Last, make sure the way you mount the motor matches what your industry needs.

You can talk to Sunrise Electric Motor experts if you need help picking a motor. They can help you make things simpler, get strong torque at slow speeds, and change the motor for your job. You can start with a test model or ask for help to get started.

FAQ

What makes a frameless torque motor different from a regular motor?

A frameless torque motor has only a rotor and stator. This design lets you put the motor inside your machine. It saves space and makes the machine lighter. You get better efficiency because the load connects right to the motor.

How do I choose the right frameless torque motor for my project?

First, write down how much torque, speed, and size you need. Check if the motor fits in your space. Make sure it follows safety and quality rules. You can ask Sunrise Electric Motor for help with special options.

Can I use a frameless torque motor in harsh environments?

Yes, you can use these motors in tough places. Sunrise Electric Motor frameless motors have IP54 or higher ratings. These ratings protect against dust and water. You can use them in factories, outside, or in medical labs.

What industries use frameless torque motors the most?

These motors are used in robotics, aerospace, medical devices, and precision tools. They help machines move smoothly and work with high accuracy.

Tip: If you need a motor for a special job, ask Sunrise Electric Motor about custom solutions.
