Today's factory systems need dependable electric drives to run well. You can increase system output and working power by choosing brushless DC units instead of older brushed models. These easy-care designs give great continuous power inside tough machines. Engineers group BLDC motor types using three main physical traits: internal structure (Inrunner versus Outrunner), control method (Sensored versus Sensorless), and magnetic flow direction (Radial versus Axial).

Learning about these technical options helps you pick the best DC brushless motors for your automation projects. As a top China manufacturer, Sunrise Motor provides custom OEM and ODM brushless motor options at low factory prices. Use this helpful buying guide to choose the correct BLDC design for your moving machine setups.

Key Takeaways

• Inrunner BLDC motors give high speeds for tools, while outrunner models offer more power for heavy machinery.

• Sensored motors provide great starting power at slow speeds, while sensorless motors deliver dependable high-speed performance in harsh conditions.

• Axial flux motors squeeze extra strength into small areas when you compare them to regular radial flux designs.

• Buying straight from Chinese factories lowers your supply expenses and makes creating custom products much faster.

Primary BLDC Motor Types by Structural Design

You can select the ideal physical frame design to maximize drive performance in your mechanical system. Motor manufacturers divide primary bldc motor types into two structural layouts: inrunner and outrunner designs. Each arrangement changes the location of the rotating permanent magnets relative to the stationary stator windings.

Inrunner BLDC Motors for High-Speed Applications

Inrunner configurations position the permanent magnet rotor inside the stationary stator assembly. This internal arrangement minimizes the diameter of the rotating core. A smaller core diameter reduces overall rotational inertia significantly. The low inertia allows your drive system to accelerate, decelerate, and change direction with rapid dynamic response.

Engineers specify inrunner construction when application requirements demand extremely fast shaft speeds rather than raw starting torque. Small high-performance versions of these motors reach a maximum RPM range of 50,000 to 100,000 RPM in high-speed spindle operations. The outer stationary housing directly touches the stator coils, which accelerates heat dissipation away from critical internal components.

You will find inrunner motors driving industrial machinery setups that depend on smooth speed control:

• Precision CNC machine spindles requiring high rotational velocity.

• High-velocity cooling fans and industrial ventilation blowers.

• Automated fluid pumps and process compressors.

• Compact handheld power tools and high-speed assembly equipment.

Inrunner units deliver high speeds easily. However, they generate lower direct torque output. You must add mechanical gearboxes to drive heavy loads at lower rotational speeds.

Outrunner BLDC Motors for Direct-Drive High Torque

Outrunner motors reverse the traditional internal design by placing the permanent magnet rotor on the outside shell. The outer housing spins around the internal copper windings.

This type of motor design allows for additional surface area for magnet placement as well as a larger rotation radius. Since the rotor is larger in diameter, these motors are able to generate more torque.

For a given outer diameter, an outrunner design allows for thinner magnets while delivering higher sustained torque inside the same physical package size constraint. You can run these drives at lower speeds without adding extra gear reduction assemblies.

In a practical system, each stage of mechanical gearing incurs an efficiency loss of approximately 1.5% to 3%. For the same power level, an inrunner typically operates at higher RPM and lower torque. It often necessitates an extra reduction gear stage compared to an outrunner. This additional gearing stage reduces overall system efficiency. Consequently, from a full-system perspective, outrunner motors are generally more efficient, especially in direct-drive applications where no gearing losses occur.

Industrial engineers select outrunner brushless units for robotic joints, direct-drive conveyor belts, and pick-and-place automated systems. The higher rotational inertia of the spinning outer shell stabilizes velocity fluctuations across heavy loads. Choosing between these physical structures helps you maximize mechanical output without wasting input electrical power.

Commutation Methods: Sensored vs. Sensorless Types

Electronic controllers need constant rotor position updates to switch internal stator currents correctly. You can select from two main commutation methods when choosing bldc motor types for heavy equipment.

Sensored BLDC Motors for Precise Low-Speed Control

Sensored drives place small Hall effect sensors right inside the stator setup. These magnetic sensors find rotor pole positions well, even when the shaft is not moving. You get immediate position feedback as soon as the system starts up. This fast feedback produces full starting torque right away without any shaft delay or backwards movement. Direct sensor feedback guarantees smooth current switching under heavy mechanical loads.

Engineers choose sensored drive setups for complex machines that need controlled motion at low speeds. Hall effect sensors offer lower resolution, which limits high-precision position control. Even so, these drives provide decent positioning accuracy and steady speed control under changing load conditions. You can use this reliable drive action in CNC machine tools where basic positioning works during heavy cutting tasks, keeping machine performance stable.

Sensorless BLDC Motors for High-Speed Reliability

Sensorless drive designs completely remove internal Hall sensors and extra signal wires. Instead, the electronic controller finds the real-time rotor location by reading back electromotive force signals on idle windings. You remove fragile sensor wires, internal solders, and circuit boards from the bldc build. This simple setup creates a strong brushless unit that handles high heat, wet air, or shaking inside tough industrial plants.

A sensorless brushless motor offers great mechanical reliability for high-speed uses. The outside controller calculates position accurately after the rotor spins fast enough to create clear voltage signals. You get maximum drive efficiency during long work cycles in fast cooling fans, industrial liquid pumps, and blowers. Removing physical sensor parts lowers motor weight, makes repairs simpler, and improves long-term gear performance.

Magnetic Flux Configurations: Radial vs. Axial Flux

Magnetic flux paths determine how internal electromagnets pass mechanical energy inside a motor case. You can pick radial or axial flux bldc designs based on your room and load needs.

Radial Flux Motors for Standard Industrial Equipment

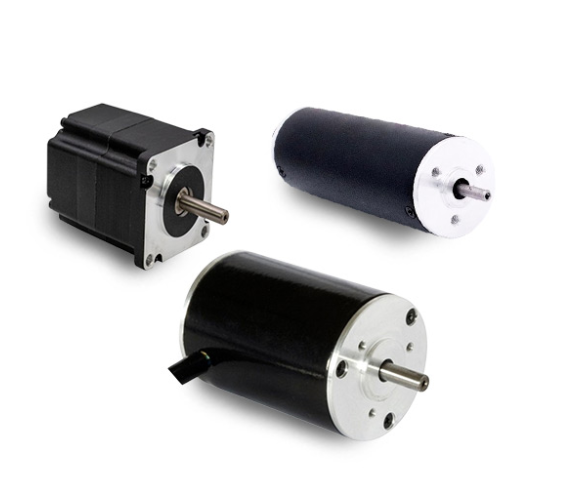

Radial flux models send magnetic lines sideways to the main spinning shaft. Sunrise Motor offers strong 3-phase winding designs in flexible round, square (NEMA 17 to NEMA 34), and flat frames. These different shapes fit easily into standard factory tools, moving belts, and accurate robot arms.

Factory machines depend on this proven design for steady long-term daily work. Regular radial units reach top efficiency between 92% and 94%. Sunrise improves these basic models using smart multipole builds. This design gives up to 36% more torque along with great strength against heavy outside forces.

Axial Flux Motors for High Power Density Requirements

Axial flux builds line up magnetic field paths parallel to the turning shaft. In these brushless drives, magnetic flux flows straight from one magnet, through the core, to another magnet. This short route reduces core losses while making a flat motor frame.

An axial flux bldc setup boosts output torque inside tight spaces. You get 30-40% more torque for a similar motor size compared to standard radial shapes. This total design gives up to 4 times the power density for tough setups.

Picking axial flux gives your machine top output without adding extra size. These special dc brushless motors hit top efficiency of 96% or higher during hard work. Choosing the right magnetic path raises total machine performance.

Key Technical Parameters for Engineering Selection

Evaluating KV Rating, Torque Constants, and Back-EMF

You need to check speed constants (KV), torque constants (Kt), and back-EMF constants (Ke) to build a great machine. A motor's KV number works oppositely to its actual turning force. Inside the motor, adding extra wire coils boosts the internal magnetic strength. For instance, a 1000KV bldc motor creates about 2.3 times more turning force than a 2300KV motor using equal electric current.

For robotic arm applications, low KV motors (500-1200 KV range) are recommended for their precision torque control.

Low KV motor choices pack many loops of thin wire inside the center core. This setup creates powerful magnetic pulls from small amounts of electricity, providing strong turning power at slower speeds. These slower designs give excellent position control and smooth movement when pushing changing heavy loads. Working conditions can also change these internal electrical values during long running times. Specifically, Ke and Kt might shift slightly as the inner magnets get warmer.

Voltage Ranges, Power Outputs, and Thermal Dynamics

Sunrise Motor offers flexible electrical choices that easily fit into your factory electricity setups. You can pick standard operational voltage levels starting from 12VDC all the way up to 310VDC. These strong bldc motor models produce high steady energy outputs up to 3000W in tough automated workspaces. Selecting the correct working voltage keeps motor heat stable during non-stop heavy work cycles.

Pairing your electronic controller with matching gears helps you unlock the absolute highest energy efficiency. Modern motor controllers handle internal heat limits while giving you exact position choices. Adding a matching planetary gearbox boosts output turning force without making the motor run too hot. A well-built motor setup lasts a long time inside busy manufacturing plants. This efficient system lowers long-term operating costs, proving better than old brushed designs while improving your total machine output.

Sourcing BLDC Motors Directly from China Manufacturers

Buying directly from China transforms your supply chain operations. You gain immediate access to advanced production technology and lower production overhead. Working directly with specialized factories simplifies your procurement efforts and improves product stability.

Cost Advantages and Supply Chain Integration

Direct purchasing cuts total cost significantly by removing third-party vendors. Intermediate agents add hidden costs that inflate your operational budgets over time. You optimize capital efficiency when you contract directly with the factory floor.

Purchasing anything directly from its manufacturers eliminates unnecessary costs in the middle layers. In comparison, when you purchase from a distributor, they will sometimes charge you 20–30% more than the original price as part of their profit.

Direct relationships allow closer monitoring of material sourcing and assembly steps. You secure consistent component quality across every manufacturing run. Chinese suppliers integrate local material ecosystems to lower bill-of-materials expenses. This integration yields affordable dc brushless motors without lowering structural durability or performance.

A complete dc brushless motor manufacturers comparison shows distinct timeline advantages when you order direct. Local distributors often hold limited stock, creating unexpected fulfillment delays. Chinese factories maintain strong production capacity to ensure predictable shipment schedules.

Direct supply lines eliminate intermediary markups and protect your bottom line. You maintain direct control over product delivery and delivery schedules.

Rapid Prototyping and Scalable OEM Customization

Modern engineering projects demand flexible manufacturing options to meet tight commercial deadlines. Direct factory engagement grants access to rapid prototyping services. Skilled factory engineers convert your custom CAD drawings into functional test units quickly.

Factories deliver custom bldc motor prototypes efficiently regardless of annual factory schedules. Engineering teams maintain steady tooling workflows during peak season and off season. This operational stability guarantees predictable engineering review cycles for your technical team.

1. Send your project needs, CAD models, and shaft details to the engineering team.

2. Get working test units within one month during busy or slow seasons.

3. Test physical performance in your lab before launching final full-scale sales.

Engineers adapt coil windings, shaft dimensions, and mounting flanges to match your mechanical drawings. China-based OEM factories scale production volumes seamlessly as your market demands increase. The manufacturer adjusts assembly lines to build small custom batches or high-volume shipments efficiently.

Direct technical communication speeds up design modifications and prevents production misunderstandings. You talk directly with the engineers who build your drive systems. This close collaboration shortens design iterations and helps launch your product faster. You get durable brushless hardware tuned precisely to your system parameters. Direct factory relationships provide the customization and reliability your automated projects require.

Quality Compliance and Custom Procurement Workflow

Custom Windings, Shafts, and IP65 Environmental Protection

Sunrise Motor offers many custom options to fit demanding factory projects. You can request custom windings to change the voltage settings. Factory workers adapt motor shafts with keyways, flat cuts, gear teeth, or custom lengths. They also add special wiring, pulleys, and encoders directly on the line.

Tough work areas often expose equipment to heavy water and fine dust. You can choose IP65 seals to protect delicate inner parts. These sealed cases block moisture to keep copper coils and magnets safe. Such custom changes ensure your motor lasts inside harsh factories.

Navigating Quality Certifications: CE, TUV, IEC, and RoHS

Buying parts overseas brings real risks if you skip checkups. Avoid these common global buying traps:

• Changing quality levels between different factory batches.

• Confusing certificates that bring legal compliance risks.

• Missing technical papers from the supplier engineering team.

• Unverified testing papers for key global trade markets.

Establish strict check routines during the initial quote stage. Always ask for real product datasheets and test reports. Request official RoHS 3 compliance forms and material papers from your vendor. Inspect cable insulation closely because cheap plastics often fail tests.

Always request working bldc motor samples and arrange third-party factory audits before approving bulk shipments.

Sunrise Motor strictly follows major global quality standards. Our production lines pass CE, TUV, CQC, and IEC checks. We provide full tracking papers for every single batch of parts. Sourcing certified hardware directly from our China plant protects your money. You get reliable brushless motors built just for your industrial needs.

Selecting the ideal bldc motor types directly transforms your equipment performance and overall system efficiency. You can achieve peak electrical efficiency between 85% and 96% while securing a long operational lifespan over 10,000 hours. Proper rotor configurations eliminate mechanical wear, optimize heat dissipation, and lower long-term industrial maintenance costs.

Sourcing direct from Sunrise Motor delivers custom brushless electro-mechanical engineering at competitive factory-direct pricing. You receive tailored motor designs with custom windings, bespoke shafts, and flexible output power settings. Contact our technical sales team today to request custom working samples, CAD models, and competitive price quotes for your next bldc project.

FAQ

What operational voltage ranges do Sunrise Motor BLDC models support?

You can run these drives using flexible power choices from 12VDC to 310VDC. This wide power range fits many setups, from small battery tools to big high-voltage plant equipment.

How do you choose between sensored and sensorless BLDC designs?

Select sensored motors when your machine needs high starting torque and accurate slow movement. Pick sensorless units for fast tools working in tough spots with high shaking, strong heat, or moisture.

Can you request custom mechanical shaft modifications for your project?

Yes, you can order custom shaft changes right from the manufacturing plant. Sunrise Motor modifies shafts with flat cuts, keyways, gear teeth, or special lengths to match your mechanical plans.

What physical frame shapes are available for industrial integration?

You can choose from round, flat, and square frame styles, including NEMA 17 to NEMA 34 builds. Reviewing these bldc motor types helps you fit strong drives inside small machine spaces quickly.
